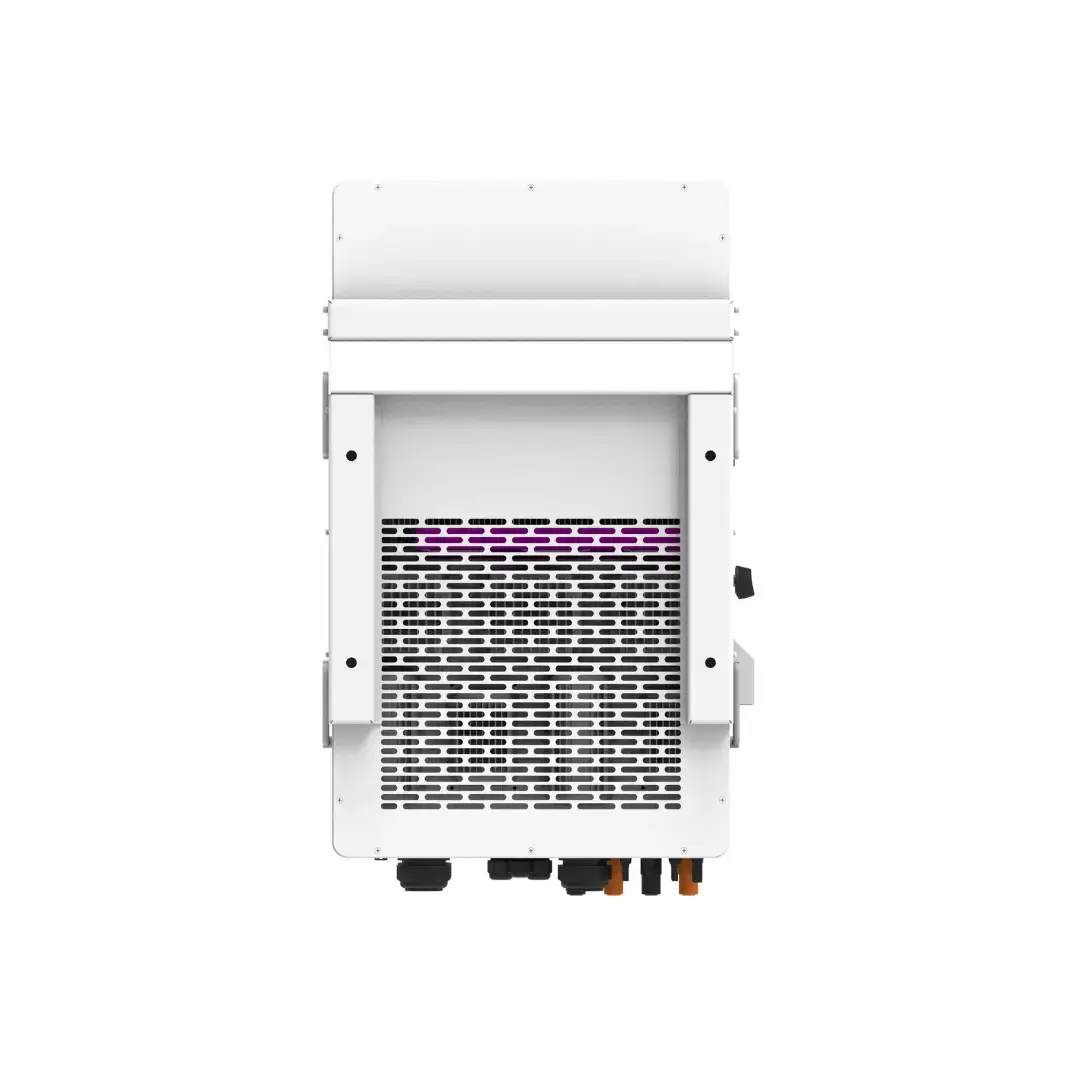

Deye SUN-50K-SG01HP3-EU-BM4 50kW Three-Phase Hybrid Inverter – Powerful Solar Solution

Empower large-scale solar systems with the Deye SUN-50K-SG01HP3-EU-BM4, a 50kW three-phase hybrid inverter designed for commercial and industrial applications. Supporting high-voltage LiFePO4 batteries (160-800V), 4 MPPT trackers, and smart monitoring, it integrates solar, battery, grid, and diesel generator inputs with a <4ms switchover for seamless backup. With parallel scalability (up to 10 units) and 100% unbalanced output. This inverter ensures maximum efficiency and flexibility—backed by Deye’s advanced hybrid technology.

Why Choose the Deye SUN-50K-SG01HP3-EU-BM4 Inverter?

• High-Capacity Performance: Delivers 50kW (55kVA max) with 65kW max PV input, 97.6% max efficiency, and 100% unbalanced output (up to 50% per phase), ideal for heavy three-phase loads.
• 4 MPPT Efficiency: Four MPPT trackers (150-850VDC, 1000V max, 36A per string) optimize solar harvest from complex arrays even in varied conditions.
• High-Voltage Battery Support: Compatible with LiFePO4 batteries (160-800V, 100A max charge/discharge), offering 95.4% battery charge efficiency and two battery inputs for scalability.
• Smart Monitoring: WiFi-enabled platform (CAN/RS485/RS232) with colorful touch LCD supports remote monitoring, shutdowns, and firmware updates via the Deye Cloud app.
• Robust & Versatile: Features IP65 rating, DC/AC coupling, parallel operation (up to 10 units), diesel generator storage, and protections (overcurrent, overvoltage, reverse polarity, thermal).

Easy Installation, Durable Design

The SUN-50K-SG01HP3-EU-BM4 measures ~527 x 894 x 294 mm, weighs 80 kg, and operates from -40°C to +60°C (derating above 45°C). Install by certified electricians using MC4 connectors for PV, AC terminals (230/400VAC, 3-phase), and high-voltage battery cables. Ensuring grounding and ventilation. Supports LiFePO4 batteries and retrofits existing systems. it includes a 5-year warranty.

Key Specs

• Rated Power: 50kW (55kVA max); Max PV Power: 65kW
• Efficiency: 97.6% (Max); 97% (European); >99% (MPPT)
• PV Input: 150-850VDC (MPPT); 1000V max; 36A x 4
• Battery Voltage: 160-800VDC; 100A max charge/discharge
• AC Input/Output: 230/400VAC, 3-Phase; 79.8A max; 50/60Hz
• Dimensions: ~527 x 894 x 294 mm
• Weight: 80 kg
• Features: 4 MPPT, WiFi Monitoring, Parallel (10 units), Diesel Generator Support, IP65, CAN/RS485
• Warranty: 5 Years
• Operating Temperature: -40°C to +60°C

Optimize Large-Scale Solar

The Deye SUN-50K-SG01HP3-EU-BM4 50kW Hybrid Inverter delivers efficient, scalable, and reliable power for commercial solar systems. Buy now and harness sustainable energy with Deye’s trusted technology!
