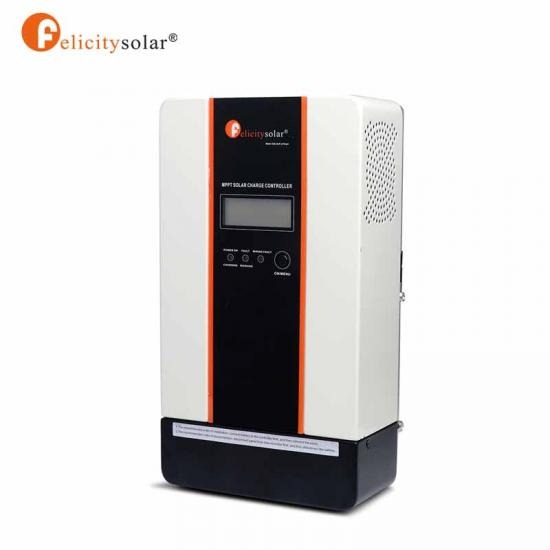

Felicity 100A 48V MPPT Charge Controller SCCM-10048 Felicity MMPT Solar charge controller with 99.8% Efficiency for Home or commercial application

1. Perfect protecting function

2. Self heat radiation, IP20 protection grade

3. The tracking efficiency can reach up to 99.8%

4. Excellent design inside and outside, with touch control

5. Four-level charging pattern, which can extend the lifespan of battery

A maximum power point tracker is an electronic DC to DC Converter that optimizes the match between the solar array (PV panels),and the battery Bank or utility grid. Simply put, they convert a higher voltage DC output from the solar panels ( and a few wind generators) down to the lower voltage needed to charge batteries.

Compare to conventional PWM controllers, MPPT technology increases the charge efficiency up to 20% and potentially decrease the power of solar array needed.

This solar charge controller is an advanced solar charger with maximum power point tracking. The intelligent MPPT algorithm. Allows the solar charge controller to extract maximum power from the solar arrays by finding the maximum power point of the arrays.

The MPPT battery charging process has been optimized for long battery life and improved system performance. Self-diagnostics prevent damage when installation errors or system faults occur. This charger also features a multifunctional LCD with communication ports for remote battery temperature and voltage measurement.

Advantages of this MPPT Charge Controller include:

Intelligent Maximum Power Point Tracking Technology

rating current 100a

pv array 15-170vdc/30-170vdc/60-170vdc

Compatible for PV system in 12v, 24v or 48v
Three stage charging optimizes battery performance ( Two stage charging in lithium battery mode)
Maximum charging current up to 30A/45A/70A
Maximum efficiency up to 98%
Automatic battery Voltage detection (Lithium battery voltage need to be set manually)
Support Lithium battery,Lead acid battery, AGM and Gel battery
Integrated intelligent slot compatible with MODBUS

Protection Features of SCCM-10048

– Over-Charge Protection
– Over-Discharge Protection
– Short-Circuit Protection
– Reverse Polarity Protection
– Over-Temperature Protection

Benefits of SCCM-10048

– Maximizes Energy Harvesting: Optimizes solar energy production
– Reliable Charging: Ensures safe and efficient battery charging
– Real-time Monitoring: Enables remote system monitoring and control
– Durable Design: Built with high-quality components for long lifespan
– Cost-Effective: Reduces energy costs and increases system efficiency
