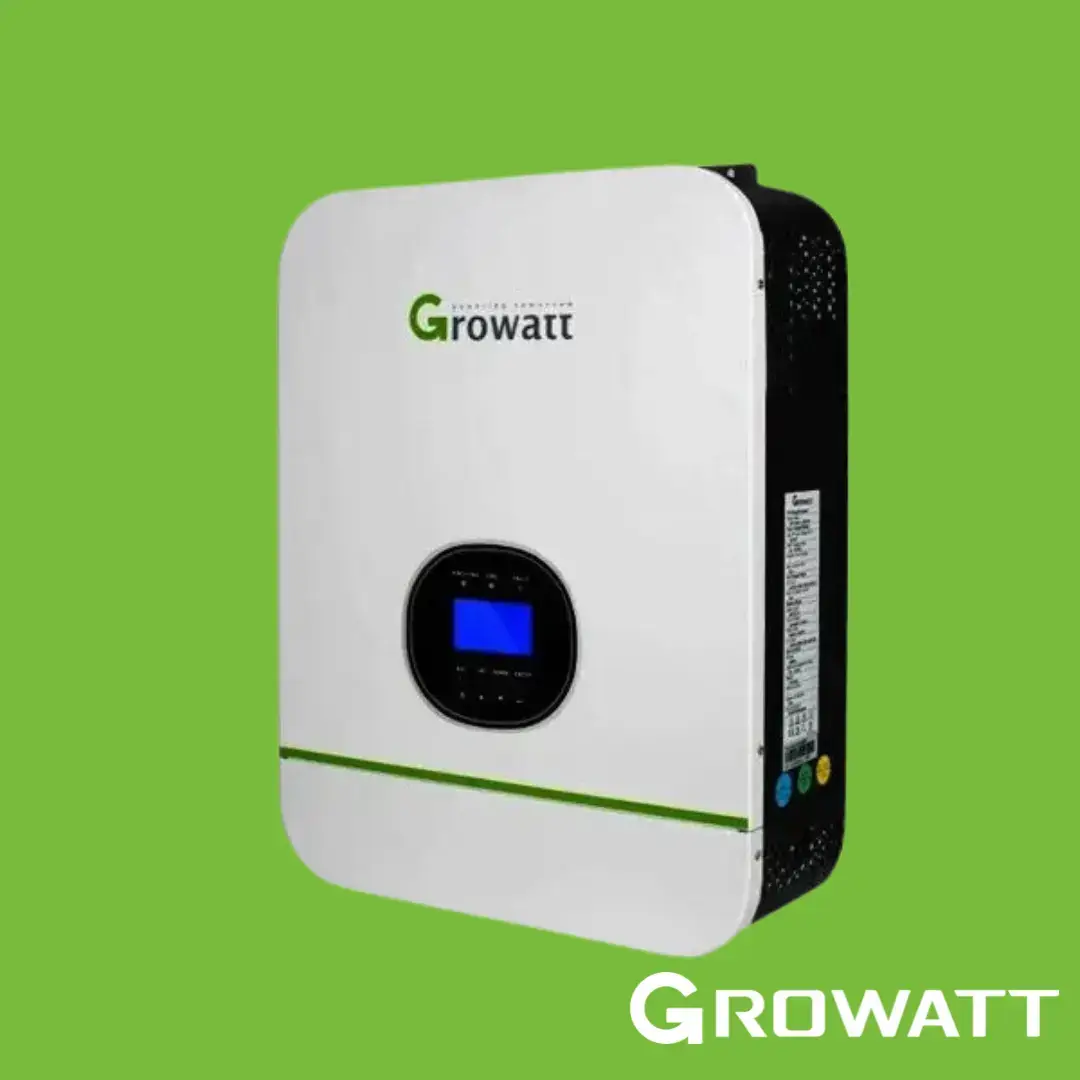

Growatt SPF 3000TL HVM-48 3kW 48V Hybrid Inverter – Efficient Off-Grid Power

Empower your home or small business with the Growatt SPF 3000TL HVM-48, a 3kW 48V hybrid inverter designed for off-grid and backup power applications. Integrating a high-frequency pure sine wave inverter, MPPT solar charge controller, and UPS functionality, this compact, transformerless system ensures reliable power conversion. With configurable input priority and optional WiFi monitoring, it’s ideal for solar self-consumption and energy independence—backed by Growatt’s global expertise in smart energy solutions.

Why Choose the Growatt SPF 3000TL HVM-48 Inverter?

• Versatile Hybrid Design: Supports solar (2400W max PV), grid (230VAC), or generator inputs, with configurable priority (solar/battery/grid) for optimized energy use.
• Efficient Power Conversion: Delivers 3kW (3000VA) continuous output with 6kVA surge capacity, 93% peak efficiency, and pure sine wave for sensitive electronics.
• Integrated MPPT Controller: Maximizes solar harvest with a 60-115VDC MPPT range, 145VDC max open-circuit voltage, and 40A max solar charge current.
• Smart Monitoring: Optional WiFi/GPRS module (plug-and-play) enables real-time system tracking via the Growatt ShinePhone app (iOS/Android), though not available in South Africa until further notice.,
• Robust Safety: Features overload, short-circuit, deep discharge, overvoltage, and overcurrent protection, ensuring system and appliance safety.

Easy Installation, Reliable Performance

The Growatt SPF 3000TL HVM-48 measures 120 x 315 x 390 mm, weighs ~11.5 kg, and operates from 0°C to +50°C. It supports 48VDC battery systems (LiFePO4, lead-acid, or gel) with a 15A charge current and CAN/RS485 for BMS communication. Install by certified electricians using MC4 connectors for PV input and AC terminals, ensuring proper grounding and ventilation. The inverter offers a 10ms transfer time for PCs and 20ms for appliances, with a user-friendly LCD for monitoring. It’s priced at ~₦450,000-₦650,000 in Nigeria (fouanistore.com) or ~R6,999 in South Africa (solarcube.co.za), with a 2-year warranty.,

Key Specs

• Rated Power: 3kW (3000VA); Surge Power: 6kVA
• Battery Voltage: 48VDC
• Efficiency: 93% (Peak); MPPT Efficiency: 97%
• Waveform: Pure Sine Wave
• PV Input: 2400W max; MPPT Range: 60-115VDC; Max VOC: 145VDC
• Solar Charge Current: 40A max
• AC Input: 230VAC (90-280V selectable); 50/60Hz (auto-sensing)
• Dimensions: 120 x 315 x 390 mm
• Weight: ~11.5 kg
• Features: MPPT Controller, Configurable Priority, WiFi/GPRS (optional), CAN/RS485, Overload Protection
• Warranty: 2 Years
• Operating Temperature: 0°C to +50°C

Sustainable Power, Simplified

The Growatt SPF 3000TL HVM-48 3kW 48V Inverter offers efficient, reliable, and affordable off-grid power for homes and businesses. Buy now and harness solar energy with Growatt’s trusted technology.
