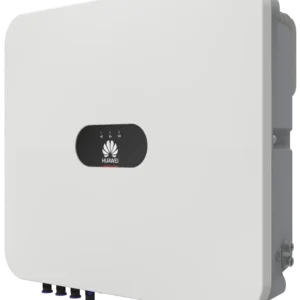

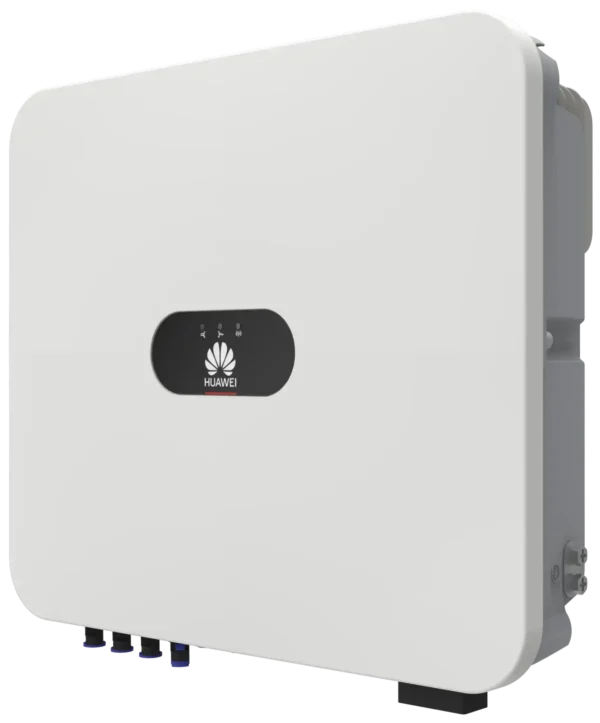

Huawei Sun2000-100KTL-M2 100kW Inverter – Smart PV Controller
- Maximum efficiency 98.8% (@480V)
- Ten independent maximum power point tracking (MPPT) circuits and 20 PV string inputs. Flexible configuration of PV strings is supported.
- Smart PV module self-learning: Automatically detects PV module failures, helping rectify faults. Optimizes the working mode to obtain the optimal working mode of the system.
- Smart air cooling: Adjusts the fan speed based on the ambient temperature and load to ensure the service life of fans and avoid frequent maintenance.
- MBUS networking: Uses the existing power line for communication and does not require additional communications cable, which reduces the construction and maintenance costs and improves communication reliability and efficiency.
- Smart I-V curve diagnosis: Implements I-V scanning and health diagnosis for PV strings. In this way, potential risks and faults can be detected in time, improving the plant operation & maintenance (O&M) quality.
- Embedded DC and AC surge protection devices (SPDs) • Embedded residual current monitoring unit: Immediately disconnects from the power grid upon detecting that the residual current exceeds the threshold.
- SUN2000 solar inverters apply to grid-tied systems of large-scale PV plants and commercial distributed grid-tied systems. Typically, a grid-tied PV system consists of the PV string, solar inverter, AC combiner box, and transformer station.
Huawei Smart PV Controller Sun2000-100KTL-M2 100kW – High-Efficiency Solar Power
Transform your commercial or industrial PV system with the Huawei Smart PV Controller Sun2000-100KTL-M2, a 100kW three-phase grid-tied inverter engineered for maximum efficiency and reliability. With 98.8% efficiency, 10 MPPT trackers, and smart I-V curve diagnosis, this inverter optimizes energy yield, supports complex PV designs, and ensures robust performance. Compatible with high-efficiency panels like Jinko 590W Monofacial, it’s ideal for large-scale solar plants—backed by Huawei’s FusionSolar technology.
Why Choose the Huawei Sun2000-100KTL-M2 100kW Inverter?
- Superior Efficiency: Achieves 98.8% max efficiency (98.6% Euro) at 480V, minimizing energy losses and maximizing ROI.
- Flexible PV Design: 10 independent MPPT circuits with 20 PV string inputs (2 per MPPT) support flexible string configurations, ideal for varied orientations or shading conditions.
- Smart Diagnostics: Features smart I-V curve diagnosis for real-time PV string health monitoring, detecting faults and optimizing performance via FusionSolar app.
- Advanced Safety: Includes embedded DC/AC surge protection (Type II), arc fault circuit interrupter (AFCI), residual current monitoring, and reverse polarity protection.
- Low Maintenance: Smart air cooling adjusts fan speed based on temperature and load, extending fan life. MBUS networking uses power lines for communication, eliminating extra cables.
Easy Installation, Robust Operation

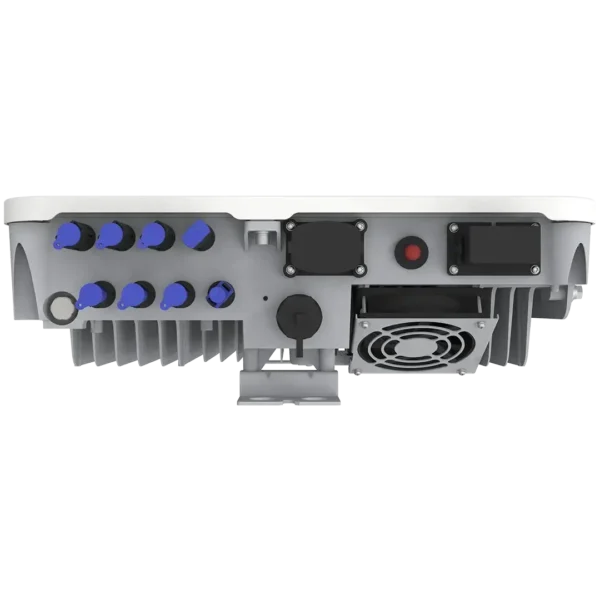

The Sun2000-100KTL-M2 measures 1035 x 700 x 365 mm, weighs 93 kg, and features an IP66 rating for dustproof and waterproof outdoor installation. It supports 200-1000V MPPT range (1100V max DC input) and 90-300VAC grid input, delivering 100kW AC output (110kW surge for 1s). Install using Amphenol H4 DC connectors and AC terminals by certified professionals, ensuring proper grounding and ventilation. The inverter integrates with Huawei’s Fusion Solar platform via RS485, WLAN, or 4G (Smart Dongle optional) for remote monitoring. Operating from -25°C to +60°C, it’s built for harsh environments. Backed by a 5-year warranty (extendable to 20 years).
Key Specs
- Power Output: 100kW (110kW surge, 1s)
- Efficiency: 98.8% max, 98.6% Euro (@480V)
- MPPT Trackers: 10 (20 PV inputs, 2 per MPPT)
- Voltage: MPPT 200-1000V; Max DC 1100V; AC 90-300V (200-230V output)
- Current: Max DC 30A per input; AC 25.8A max
- Dimensions: 1035 x 700 x 365 mm
- Weight: 93 kg
- Features: Smart I-V Diagnosis, AFCI, Surge Protection (Type II), MBUS, RS485/WLAN/4G, IP66
- Warranty: 5 Years (extendable to 10/15/20 years)
- Operating Temperature: -25°C to +60°C
Optimize Your Solar Plant
The Huawei Sun2000-100KTL-M2 100kW Inverter delivers unmatched efficiency, flexibility, and smart monitoring for large-scale PV systems. Buy now and elevate your solar energy production with Huawei’s trusted technology
