Deye BOS-G High Voltage LiFePO4 Battery – Scalable Solar Storage
- Convenient
- Quick installation standard of 19-inch embedded designed module is comfortable for installation and maintenance. Safe and reliable
- Cathode material is made from LiFePO4 with safety performance and long cycle life, The module has less self-discharge, up to 6 months without charging it on shelf, no memory effect, excellent performance of shallow charge and discharge.
- Intelligent BMS
- It has protection functions including over-discharge, over-charge, over-current and over-high or low temperature. The system can automatically manage charge and discharge state and balance current and voltage of each cell.
- Eco-friendly
- Multiple battery modules can be in parallel for expanding capacity and power. Support USB upgrade, wifi upgrade(optional), remote up grade(Compatible with Deye inverter).
- Wide temperature
- Working temperature range is from -20°C to 55°C, with excellent discharge performance and cycle life.
- LiFePO4 Cell Chemistry
- Module Energy (kWh): 5.12
- Module Nominal Voltage (V): 51.2
- Module Capacity (Ah): 100
- Working Temperature (°C): Charge: 0-55/Discharge: -20~55
- Status Indicator: Yellow: Battery High Voltage Power On / Red: Battery System Alarm
- Storage Temperature (°C): 0~35
Deye BOS-G High Voltage LiFePO4 Battery – Scalable Energy Storage
Power your solar system with the Deye BOS-G High Voltage LiFePO4 Battery, a state-of-the-art energy storage solution for residential, commercial, and industrial applications. Designed for seamless integration with high-voltage inverters like the Deye SUN-50K-SG01HP3-EU-BM4 50kW Hybrid Inverter, the BOS-G offers modular scalability (15.36–61.44 kWh), intelligent BMS, and superior safety. With a 10-year warranty and WiFi-enabled monitoring, it ensures reliable, eco-friendly power management—backed by Deye’s advanced energy storage technology.
Why Choose the Deye BOS-G Battery?
- High-Voltage Efficiency: Operates at 153.6–614.4V (3–12 modules, 51.2V each), with 120–750VDC compatibility, reducing current loss and boosting efficiency for high-power systems like the SUN-50K inverter.
- Modular & Scalable: Each 5.12 kWh module (100Ah, 51.2V) allows flexible configurations from 15.36 kWh (3 modules) to 61.44 kWh (12 modules), ideal for growing energy needs.
- Safe LiFePO4 Chemistry: Features thermal stability, low self-discharge (6 months shelf life), and ≥6000 cycles at 90% DOD (25°C), ensuring long-term reliability and safety.
- Intelligent BMS: Provides over-voltage, under-voltage, over-current, short-circuit, and temperature protection, with auto-balancing for optimal cell performance via CAN/RS485.
- Smart Monitoring: WiFi/USB upgrade support and remote monitoring via the Deye Cloud app, with status indicators for real-time system insights.
Easy Installation, Robust Design

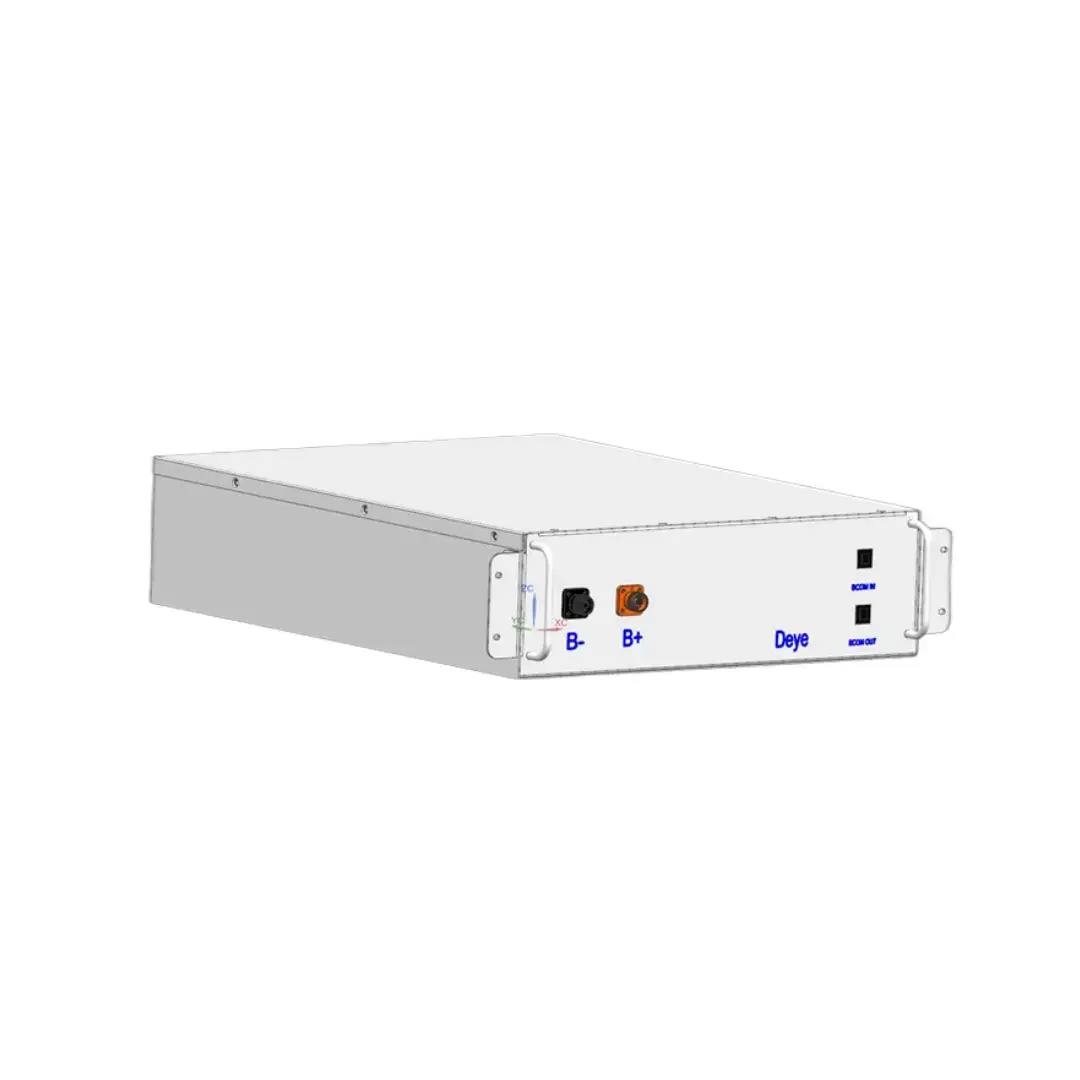

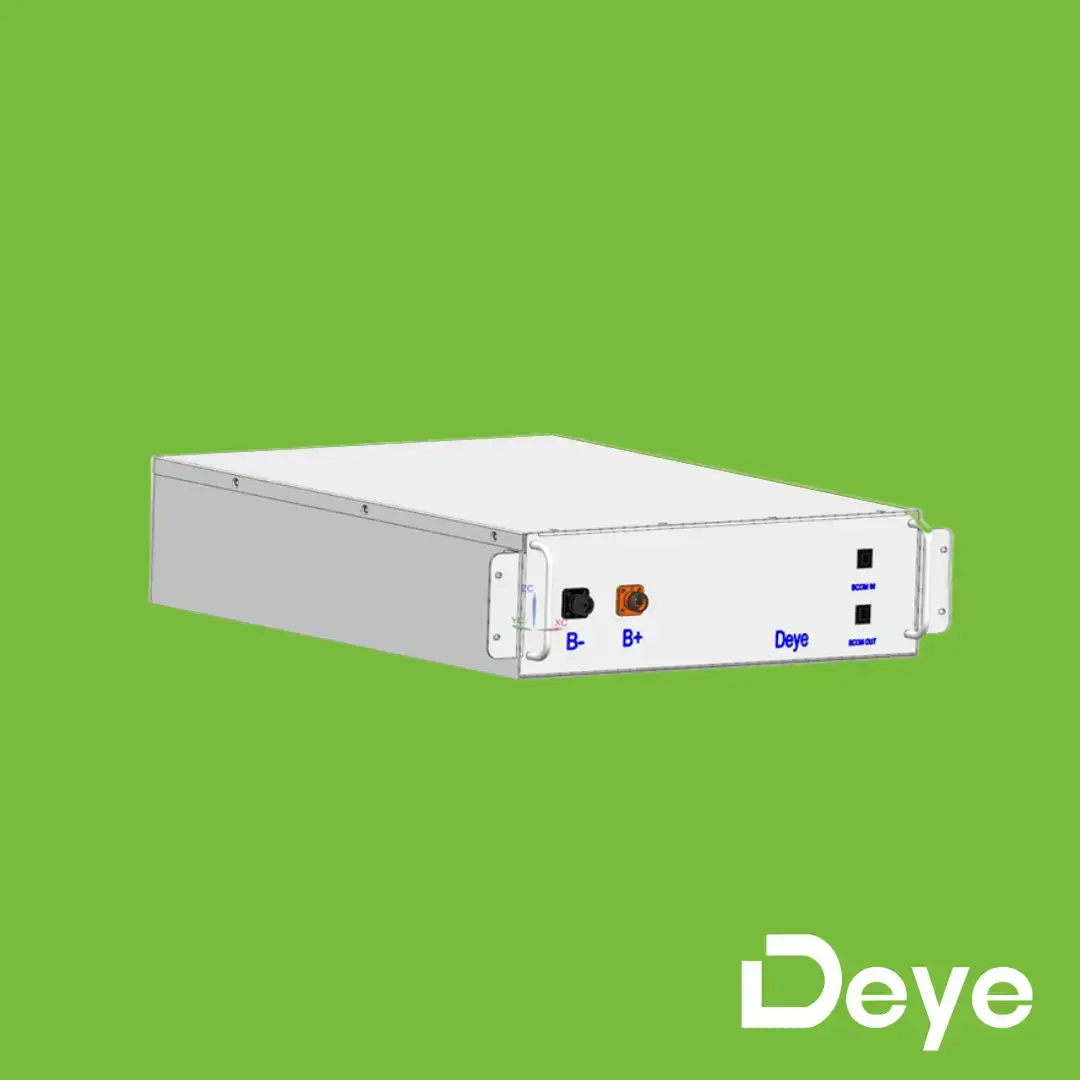

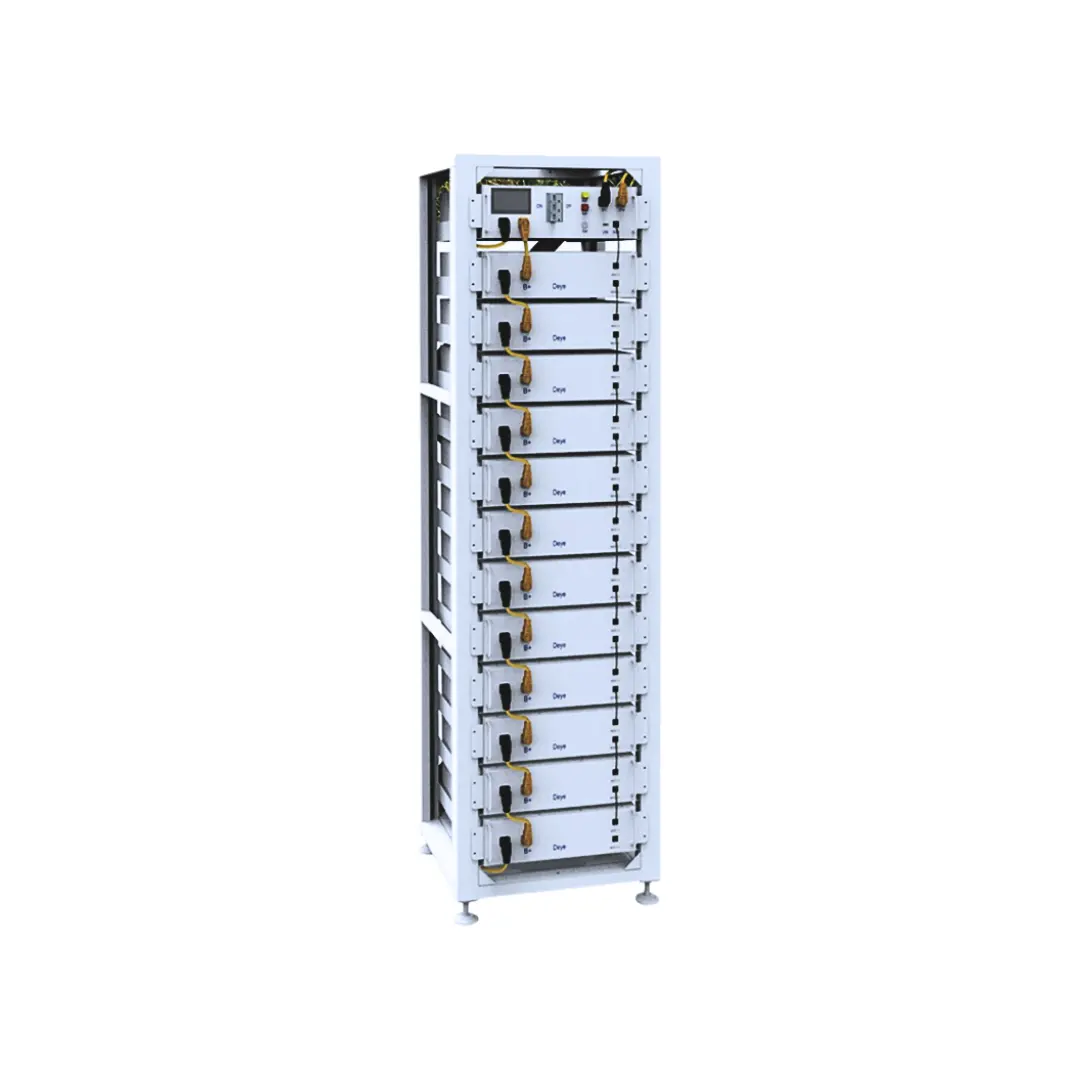

The BOS-G module measures ~440 x 570 x 133 mm (3U rack), weighs ~44 kg, and features an IP20 rating for indoor use. The system requires a high-voltage control box (HVB750V/100A-EU, ~20 kg) and 19-inch rack (e.g., 3U-HRACK for 12 modules). Install by certified technicians, connecting 3–12 modules in series (no cable connections), with a max charge/discharge current of 125A. Operates from -20°C to +55°C (charge: 0–55°C) and supports altitudes up to 2000m.
Key Specs
- Module Capacity: 5.12 kWh; 100Ah; 51.2V
- System Capacity: 15.36–61.44 kWh (3–12 modules)
- System Voltage: 153.6–614.4V (120–750VDC operating)
- Cycle Life: ≥6000 cycles @ 90% DOD, 25°C
- Charge/Discharge Current: 100A (nominal); 125A (max)
- Efficiency: >90% (standard conditions)
- Dimensions: Module ~440 x 570 x 133 mm; Control Box ~440 x 570 x 150 mm
- Weight: Module ~44 kg; Control Box ~20 kg
- Features: LiFePO4, Intelligent BMS, Modular Design, WiFi/USB Upgrades, IP20, CAN/RS485
- Warranty: 10 Years
- Operating Temperature: Charge: 0–55°C; Discharge: -20–55°C
Sustainable Energy Storage
The Deye BOS-G High Voltage LiFePO4 Battery offers reliable, scalable, and safe energy storage for high-power solar systems. Buy now and optimize your energy future with Deye’s trusted technology!
Huawei Power-M 5kW Inverter + 15kWh LiFePO4 Battery – Hybrid Power
| Weight | 44 kg |
|---|
