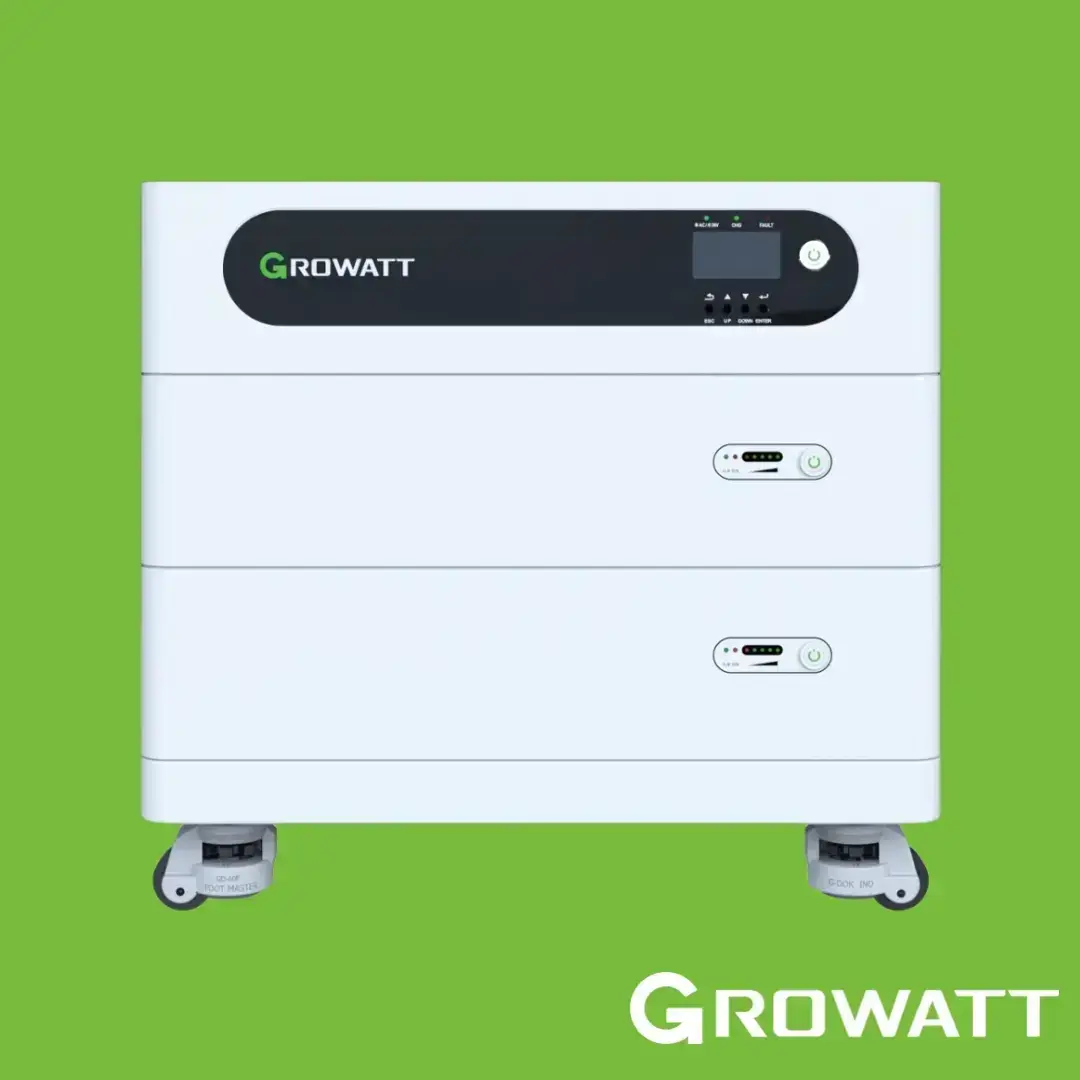

Growatt SIM 6000 ES Future-H Series 6kW Inverter + 10kWh Battery – Advanced Hybrid Power
Achieve energy independence with the Growatt SIM 6000 ES Future-H Series Inverter + 10kWh Battery. with a cutting-edge single-phase hybrid system combining a 6kW inverter and 10kWh LiFePO4 battery storage (e.g., two ARK 5.12 kWh modules). Ideal for homes and small businesses, it supports off-grid and on-grid operation, dual MPPT for optimal solar harvest. And seamless integration with solar, grid, or generator inputs. With WiFi monitoring and scalable storage. It ensures reliable power and maximizes self-consumption—backed by Growatt’s innovative Future-H Series technology.
Why Choose the Growatt SIM 6000 ES + 10kWh Battery?
- Powerful Hybrid Performance: Delivers 6kW (6000VA) continuous output with 12kVA surge capacity, 93% efficiency, and pure sine wave for sensitive appliances, supporting backup during outages (<10ms switchover).
- High-Capacity Storage: 10kWh LiFePO4 battery (two 5.12 kWh ARK modules, 100% DOD, 6,000 cycles at 25°C) stores excess solar energy, reducing grid reliance, with IP65-rated modular design for indoor/outdoor use.
- Dual MPPT Efficiency: Two independent MPPT trackers (120-460VDC, 8000W max PV, 16A per string). Optimize energy from 500W+ panels (e.g., Jinko 590W from prior query), even in varied orientations or shading.
- Smart Monitoring: Built-in WiFi connects to the ShinePhone app for real-time performance tracking and settings adjustments, with LCD display for on-site control.
- Safety & Flexibility: Features anti-islanding, overvoltage, overload, and short-circuit protection, plus compatibility with LiFePO4/lead-acid batteries and battery-free mode.
Easy Installation, Long-Lasting Reliability
The SIM 6000 ES measures ~450 x 540 x 150 mm, weighs ~25 kg, and operates from 0°C to +50°C. The 10kWh ARK battery (two modules, each 690 x 185 x 295 mm, 50 kg) includes a BMS for safe charging/discharging. Install by certified electricians using MC4 connectors for PV (8000W max), AC terminals (230VAC, 90-280V input), and high-voltage battery cables (350-500VDC). Requires 2+ battery modules for commissioning, with stackable design for easy expansion (up to 30kWh). it offers a 10-year battery warranty and 5-year inverter warranty.
Key Specs
- Inverter Power: 6kW (6000VA); Surge Power: 12kVA
- Battery Capacity: 10kWh (2x 5.12 kWh ARK, LiFePO4, 100% DOD)
- Battery Cycle Life: 6,000 cycles @ 25°C
- Efficiency: 93% (Inverter); 97% (MPPT)
- PV Input: 8000W max; MPPT Range: 120-460VDC; Max VOC: 500VDC
- Charge Current: 80A (Solar); 60A (Battery)
- AC Input: 230VAC (90-280V selectable); 50/60Hz
- Dimensions: Inverter ~450 x 540 x 150 mm; Battery 690 x 185 x 295 mm (per module)
- Weight: Inverter ~25 kg; Battery 100 kg (2 modules)
- Features: Dual MPPT, WiFi Monitoring, Battery-Free Mode, CAN/RS485, IP65 (Battery)
- Warranty: 5 Years (Inverter); 10 Years (Battery)
- Operating Temperature: 0°C to +50°C
Sustainable Energy, Future-Ready
The Growatt SIM 6000 ES Future-H Series + 10kWh Battery offers powerful, scalable, and smart energy storage for off-grid and hybrid applications. Buy now and embrace reliable solar power with Growatt’s trusted technology!
