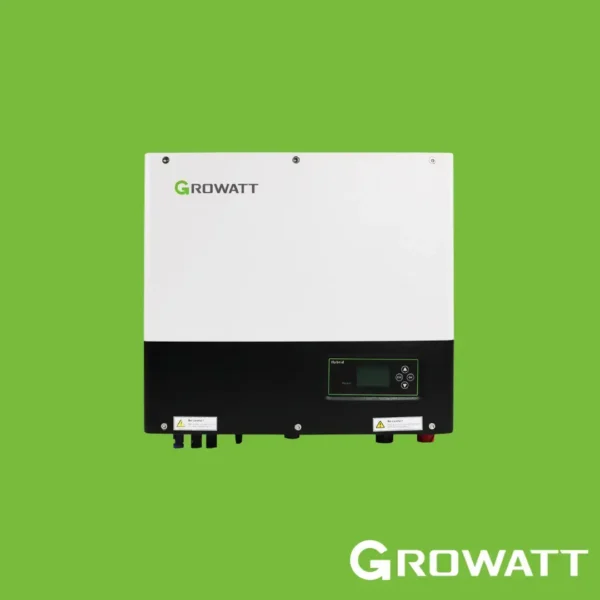

Growatt SPH 10000TL3-BH-UP 10kW 3-Phase Hybrid Inverter – Efficient Solar Power

Maximize energy independence with the Growatt SPH 10000TL3-BH-UP, a 10kW three-phase hybrid inverter designed for residential and small commercial solar systems. Featuring dual MPPT, UPS functionality, and compatibility with high-voltage LiFePO4 batteries (e.g., ARK 2.5H-A1), it supports grid-tied, off-grid, and backup modes. With smart load management, WiFi monitoring, and a 1.5 DC/AC ratio. This inverter optimizes solar harvest and reduces electricity bills—backed by Growatt’s innovative Future-H Series technology.

Why Choose the Growatt SPH 10000TL3-BH-UP Inverter?

• High-Capacity Performance: Delivers 10kW (10,000VA) continuous output with 15kVA surge capacity, 98.2% max efficiency, and 100% three-phase imbalance output for heavy loads.
• Dual MPPT Efficiency: Two MPPT trackers (120-1000VDC, 15,000W max PV, 26A per string) optimize energy from diverse panel arrays (e.g., Jinko 590W from prior query), even in shaded conditions.
• Seamless Backup: UPS function with <10ms transition ensures uninterrupted power via EPS output during outages, using PV and battery energy.
• Flexible Battery Compatibility: Supports high-voltage LiFePO4 batteries (100-550V, 25A max charge/discharge), scalable from 7.68kWh to 25.6kWh, but not lead-acid due to potential malfunctions.
• Smart Features: WiFi-enabled ShinePhone app (iOS/Android) for real-time monitoring, smart meter included for export control, and VPP-ready interface for grid services.

Easy Installation, Robust Design

The SPH 10000TL3-BH-UP measures 505 x 453 x 198 mm. Weighs 30 kg, and features an IP65 rating for indoor/outdoor use. It supports 230/400VAC grid input (50/60Hz) and operates from -25°C to +60°C. Install by certified electricians using MC4 connectors for PV, AC terminals, and battery cables. Ensuring proper grounding and <15m meter cable length. The inverter offers programmable modes (Load First, Battery First, Grid First) via LCD or app, with up to three priority periods online.

Key Specs

• Rated Power: 10kW (10,000VA); Surge Power: 15kVA
• Efficiency: 98.2% (Max); 97.5% (European); 97% (MPPT)
• PV Input: 15,000W max; MPPT Range: 120-1000VDC; Max VOC: 1000VDC; 26A per string
• Battery Voltage: 100-550VDC; Max Charge/Discharge Current: 25A
• AC Input/Output: 230/400VAC, 3-Phase; 15.2A max output current
• Dimensions: 505 x 453 x 198 mm
• Weight: 30 kg
• Features: Dual MPPT, UPS (<10ms), WiFi Monitoring, Smart Meter, IP65, Type II SPD (DC/AC), VPP-Ready
• Warranty: 10 Years
• Operating Temperature: -25°C to +60°C

Optimize Your Solar System

The Growatt SPH 10000TL3-BH-UP 10kW Hybrid Inverter delivers efficient, scalable, and reliable power for modern solar systems. Buy now and harness sustainable energy with Growatt’s trusted technology!
