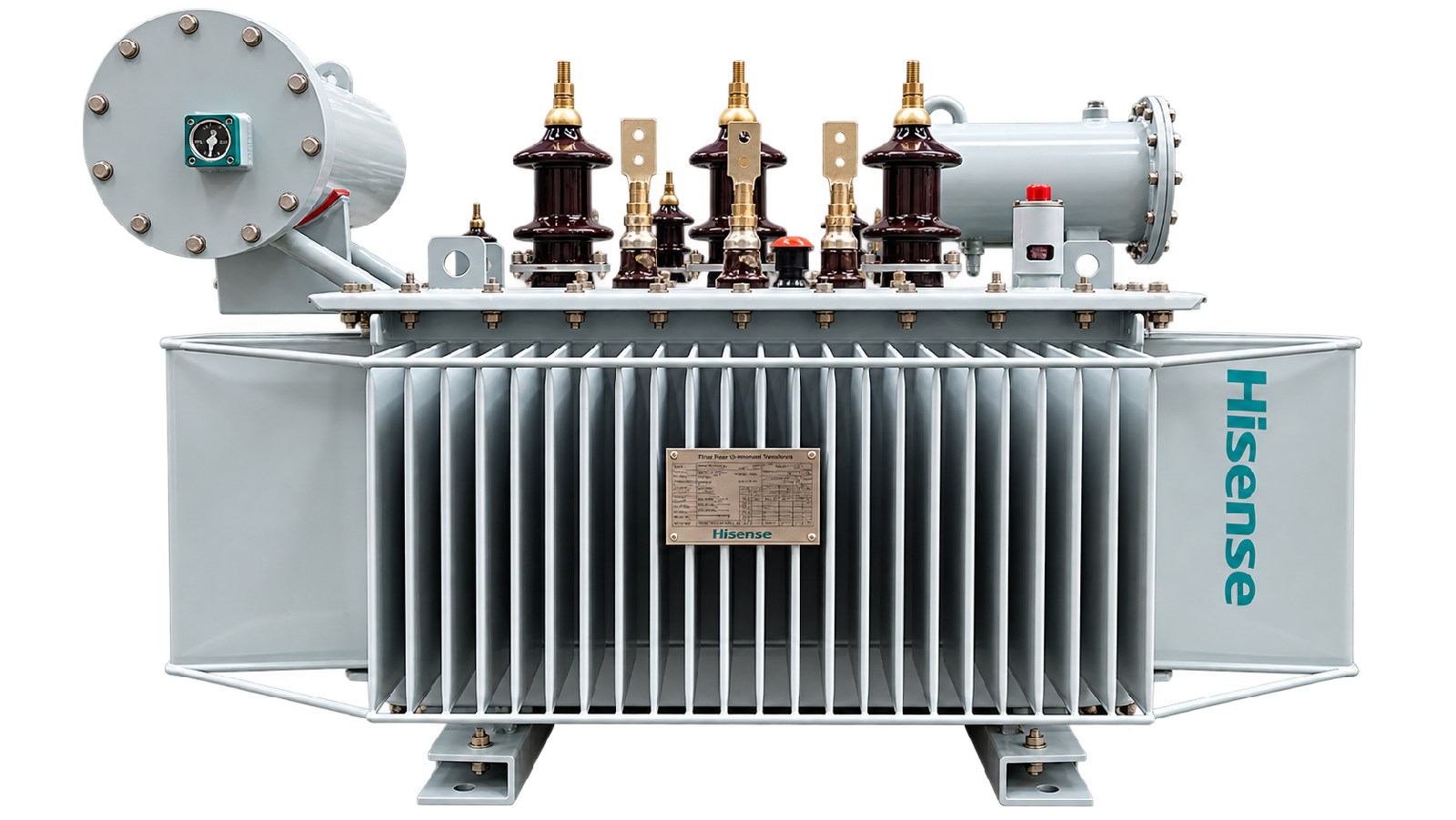

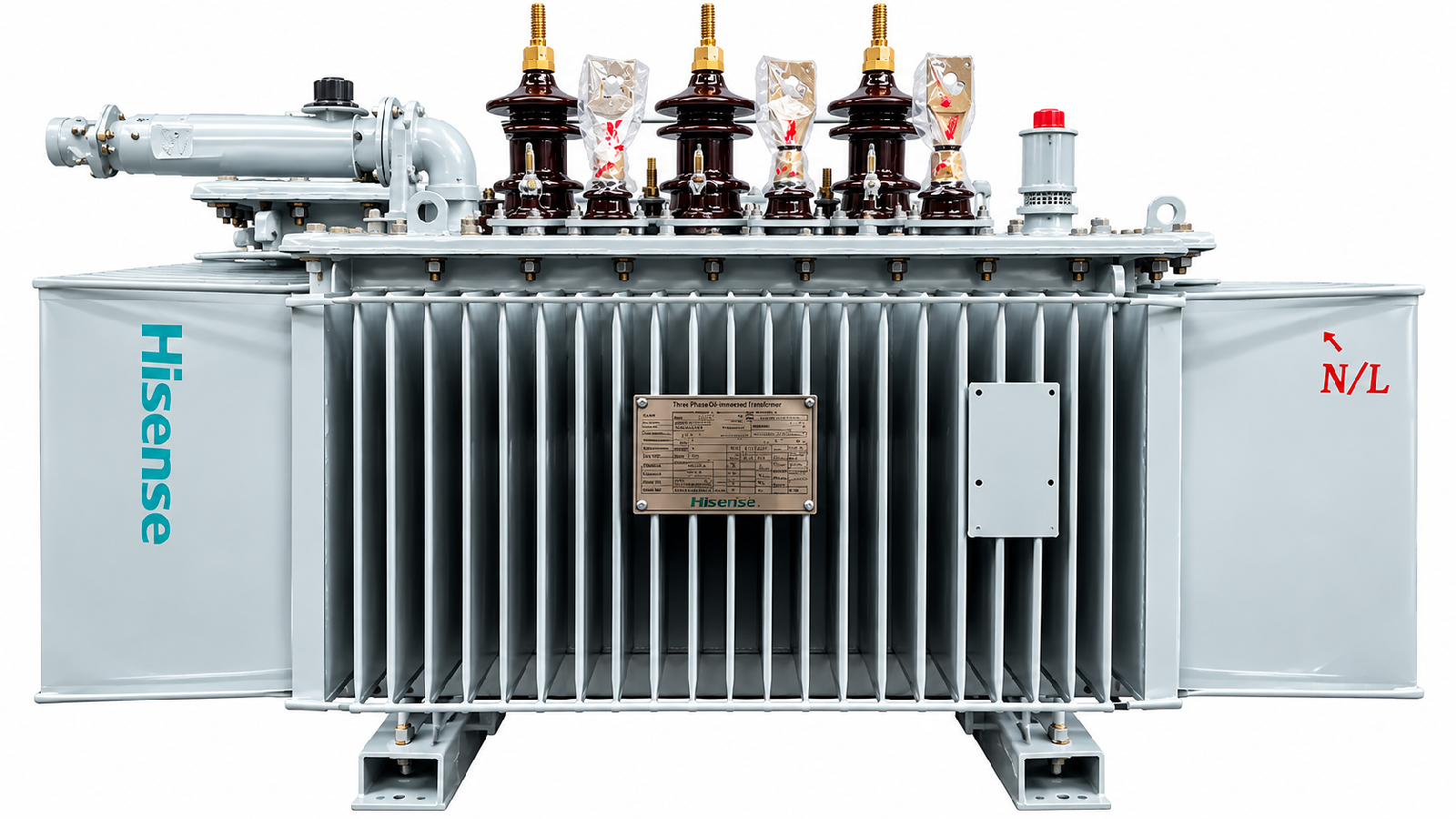

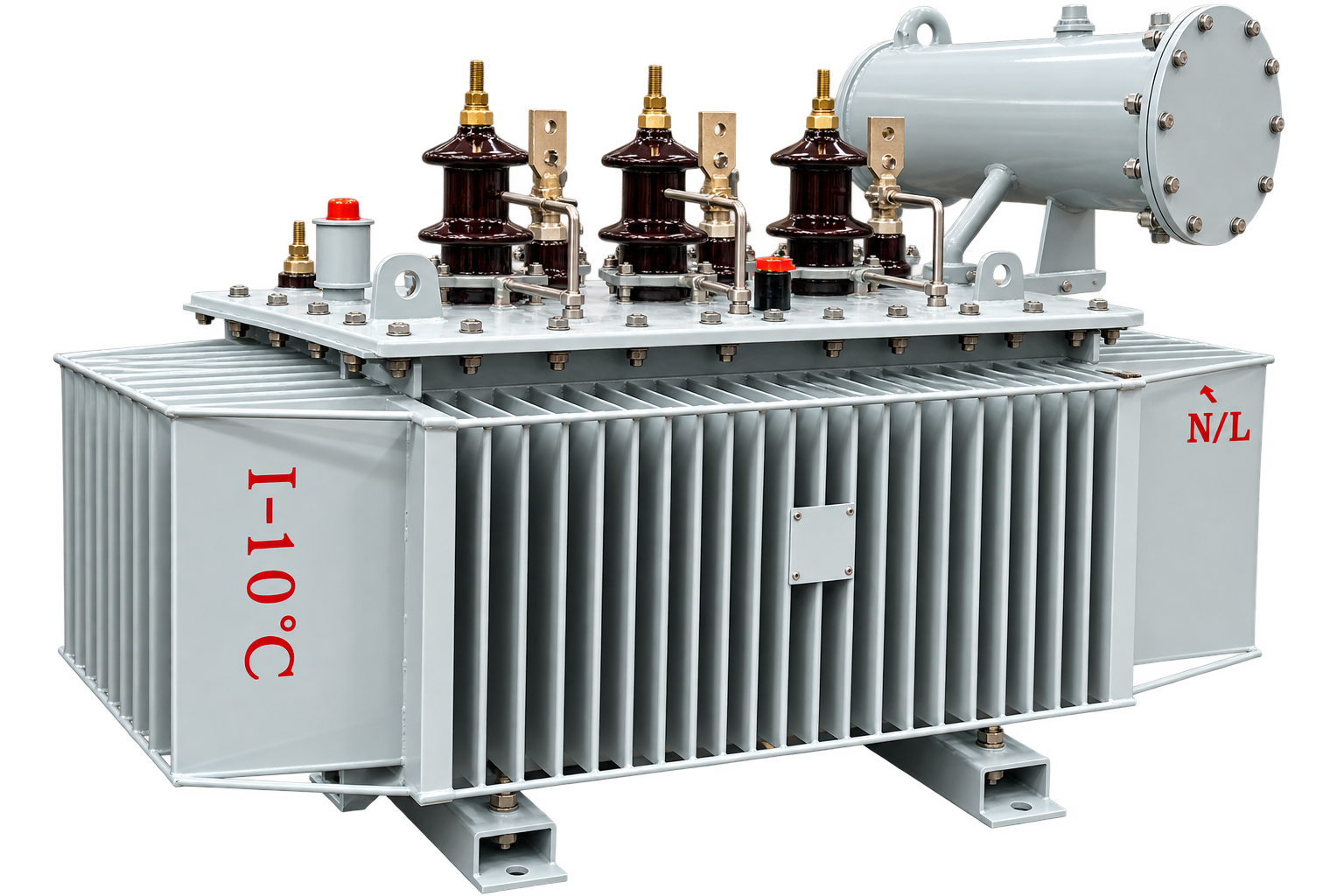

Hisense 800KVA 11/0.4KV Step Down Transformer in Nigeria

Hisense 800KVA Step Down Transformer 11/0.4KV Price in Nigeria

Original price was: ₦20,000,000.00.Current price is: ₦17,500,000.00.13% OFF

Rated Power (kVA):
800

HV (kV):
11

LV (kV):
0.4

Vector Group:
Dyn11

No-Load Loss (W):
1400

Load Loss (W) @ 75°C:
10400

Efficiency @ 100% Load:
98.4%

Efficiency @ 50% Load:
98.9% |

Cooling Type:
ONAN

Insulation Class:
A

Ambient Temperature Range:
-45°C to +45°C

Altitude Derating (1000–3000 m):
External insulation clearance corrected for altitudes ≤1000 m

Corrosion Protection:
C5

Total Weight (kg):
800 kVA – 2,430 kg

Dimensions (L × W × H) (mm):
800 kVA – 1920 × 1220 × 1580 mm

Noise Level dB(A):
800 kVA – 62

SKU: Hisense 800KVA Category: Solar & Power Solutions Tags: 11/0.4KV Transformer, 11KV Transformer Nigeria, 800KVA Transformer, Hisense 800KVA Transformer, Hisense Step Down Transformer Brand: Hisense

Description

Hisense 800KVA Step Down Transformer 11/0.4KV in Nigeria

The Hisense 800KVA Step Down Transformer 11/0.4KV is a high-capacity transformer designed to step down an 11KV medium-voltage supply to a 0.4KV low-voltage distribution system. With an 800KVA capacity, it is suited to larger power distribution requirements.

An 800KVA 11/0.4KV transformer configuration is commonly used in commercial, industrial, institutional and other high-demand electrical installations requiring medium-voltage power transformation.
