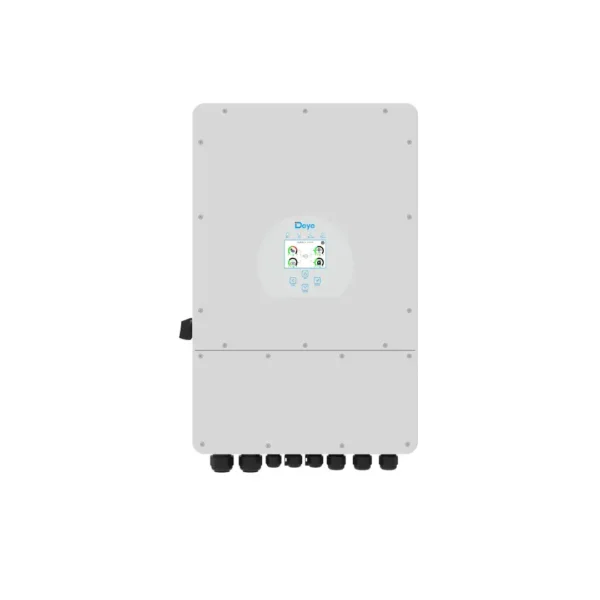

Deye SUN-12K-SG04LP3-EU 12kW 3-Phase Hybrid Inverter – Solar Power
- Three Phase
- 2 MPPT
- LV Battery Supported 100% unbalanced output, each phase; Max. output up to 50% rated power AC couple to retrofit existing solar system Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
- Max. charging/discharging current of 240A
- Support storing energy from diesel generator
- 48V low voltage battery, transformer – isolation design
- 6 time periods for battery charging/discharging
- Max. DC Input Power (kW): 15.6
- Rated AC Output and UPS Power (kW): 12
- Rated PV Input Voltage (V): 550 (160~800)
- Start-up Voltage (V): 160
Deye SUN-12K-SG04LP3-EU 12kW Three-Phase Hybrid Inverter – Advanced Solar Power
Achieve energy independence with the Deye SUN-12K-SG04LP3-EU, a 12kW three-phase hybrid inverter tailored for residential and small commercial solar systems. Supporting 48V low-voltage batteries, dual MPPT, and smart monitoring, it seamlessly integrates solar, battery, grid, and diesel generator inputs, ensuring reliable backup with <10ms switchover. With parallel scalability (up to 10 units) and 100% unbalanced output, this inverter maximizes self-consumption and flexibility—backed by Deye’s innovative hybrid technology.
Why Choose the Deye SUN-12K-SG04LP3-EU Inverter?
- Powerful Performance: Delivers 12kW (13.2kW peak) with 15.6kW max PV input, 97.6% max efficiency, and 100% unbalanced output (up to 50% per phase), ideal for heavy or uneven three-phase loads.
- Dual MPPT Efficiency: Two MPPT trackers (200-650VDC, 800V max, 26A + 13A) optimize solar harvest from diverse arrays, even in shaded conditions.
- Flexible Battery Support: Compatible with 48V LiFePO4 or lead-acid batteries (40-60V, 240A max charge/discharge), with six time-of-use periods for cost-effective energy management via BMS.
- Smart Monitoring: WiFi-enabled platform (RS485/RS232/CAN) supports remote monitoring, shutdowns, and firmware updates via the Deye Cloud app, enhancing user control.
- Robust & Versatile: Features IP65 rating, DC/AC coupling, parallel operation, diesel generator integration, and protections (overcurrent, overvoltage, reverse polarity, thermal).
Easy Installation, Durable Design
The SUN-12K-SG04LP3-EU measures 422 x 658 x 254 mm, weighs 38 kg, and operates from -40°C to +60°C (derating above 45°C). Install by certified electricians using MC4 connectors for PV, AC terminals (230/400VAC, 3-phase), and battery cables, ensuring grounding and ventilation. Supports 48V battery systems and retrofits existing setups, it includes a 5-year warranty.
Key Specs
- Rated Power: 12kW (13.2kW peak); Max PV Power: 15.6kW
- Efficiency: 97.6% (Max); 97% (European); >99% (MPPT)
- PV Input: 200-650VDC (MPPT); 800V max; 26A + 13A
- Battery Voltage: 48VDC (40-60V); 240A max charge/discharge
- AC Input/Output: 230/400VAC, 3-Phase; 18.2A rated; 50/60Hz
- Dimensions: 422 x 658 x 254 mm
- Weight: 38 kg
- Features: Dual MPPT, WiFi Monitoring, Parallel (10 units), Diesel Generator Support, IP65, CAN/RS485/RS232
- Warranty: 5 Years
- Operating Temperature: -40°C to +60°C
Power Your Future
The Deye SUN-12K-SG04LP3-EU 12kW Hybrid Inverter offers efficient, scalable, and smart energy management for three-phase solar systems. Buy now and embrace sustainable power with Deye’s trusted technology!
Deye SUN-8K-SG04LP3-EU 8kW 3-Phase Hybrid Inverter – Solar Power
| Weight | 38 kg |
|---|
