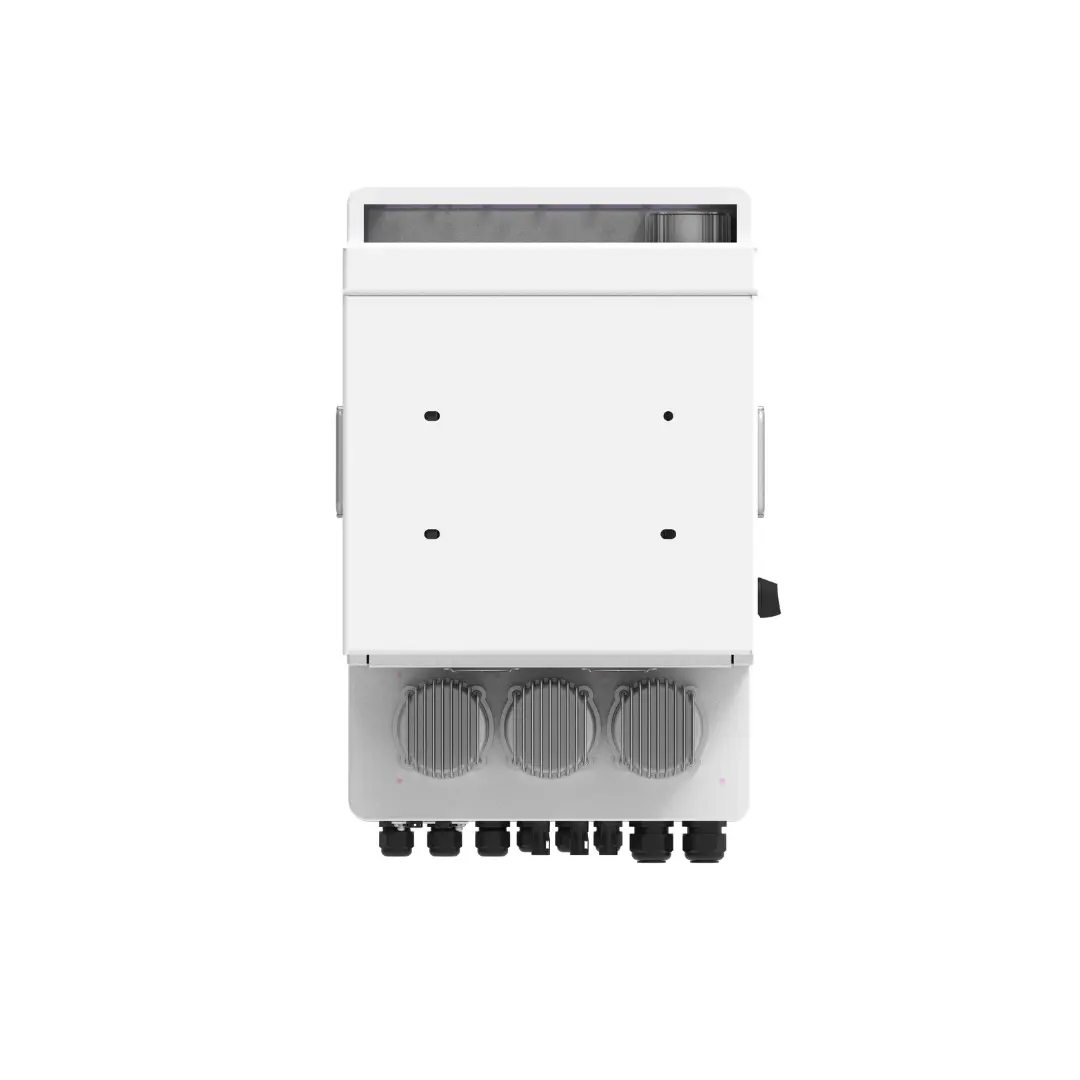

Deye SUN-8K-SG04LP3-EU 8kW 3-Phase Hybrid Inverter – Solar Power

Original price was: ₦3,000,000.00.Current price is: ₦2,750,000.00.8% OFF

Three Phase
2 MPPT
LV Battery Supported
100% unbalanced output, each phase; Max. output up to 50% rated power
AC couple to retrofit existing solar system
Max. 10 pcs parallel for on-grid and off-grid
operation; Support multiple batteries parallel
Max. charging/discharging current of 240A
Support storing energy from diesel generator
48V low voltage battery, transformer - isolation design
6 time periods for battery charging/discharging
Max. DC Input Power (kW): 10.4
Rated AC Output and UPS Power (kW): 8
Rated PV Input Voltage (V): 550 (160~800)
Start-up Voltage (V): 160

SKU: Deye SUN-8K-SG04LP3 Category: Solar & Power Solutions Tags: 48V Battery Inverter, Deye 8kW Hybrid Inverter, Deye SUN-8K-SG04LP3-EU, dual MPPT, LiFePO4 battery compatibility, smart monitoring, Three-Phase Hybrid Inverter Brand: Deye

Description

Deye SUN-8K-SG04LP3-EU 8kW Three-Phase Hybrid Inverter – Smart Solar Energy

Unlock energy independence with the Deye SUN-8K-SG04LP3-EU, an 8kW three-phase hybrid inverter optimized for residential and small commercial solar systems. Featuring dual MPPT, 48V low-voltage battery support, and smart monitoring, it seamlessly integrates solar, battery, and grid power, with diesel generator compatibility for enhanced resilience. Supporting up to 10 units in parallel and 100% unbalanced output, this inverter maximizes self-consumption and ensures reliable power—backed by Deye’s cutting-edge technology.

Why Choose the Deye SUN-8K-SG04LP3-EU Inverter?

Robust Power Delivery: Provides 8kW (8000W) continuous output with 10.4kW max PV power, 97.6% max efficiency, and 100% unbalanced output (each phase up to 50% rated power), ideal for heavy or uneven loads.
Dual MPPT Efficiency: Two MPPT trackers (200-650VDC, 800V max input, 26A per string) optimize energy from diverse PV arrays
Advanced Battery Management: Supports 48V LiFePO4 or lead-acid batteries (40-60VDC, 240A max charge/discharge), with six time-of-use periods for cost-effective charging and BMS compatibility.
Smart Monitoring: WiFi-enabled platform (via RS485/RS232/CAN ports) allows remote monitoring, instant shutdowns, and firmware updates through the Huawei FusionSolar app, simplifying maintenance.
Versatile & Safe: Offers DC/AC coupling, parallel operation (up to 10 units), diesel generator storage, and protections (overcurrent, overvoltage, reverse polarity, thermal). IP65-rated for outdoor use.

Easy Installation, Reliable Design

The SUN-8K-SG04LP3-EU measures ~422 x 702 x 281 mm, weighs ~33.6 kg, and operates from -40°C to +60°C. Install by certified electricians using MC4 connectors for PV, AC terminals (230/400VAC, 3-phase), and battery cables, ensuring grounding and ventilation. Supports low-voltage battery systems (min. 48V) and retrofits existing solar setups, it includes a 5-year warranty.

Key Specs

Rated Power: 8kW (8000W); Max PV Power: 10.4kW
Efficiency: 97.6% (Max); 97% (European); >99% (MPPT)
PV Input: 200-650VDC (MPPT); 800V max; 26A max per string
Battery Voltage: 48VDC (40-60V); 240A max charge/discharge
AC Input/Output: 230/400VAC, 3-Phase; 50/60Hz
Dimensions: ~422 x 702 x 281 mm
Weight: ~33.6 kg
Features: Dual MPPT, Smart WiFi Monitoring, Parallel (10 units), Diesel Generator Support, IP65, CAN/RS485/RS232
Warranty: 5 Years (extendable to 10 in Europe)
Operating Temperature: -40°C to +60°C

Empower Your Solar Future

The Deye SUN-8K-SG04LP3-EU 8kW Hybrid Inverter delivers efficient, scalable, and smart energy management for modern solar systems. Buy now and harness sustainable power with Deye’s trusted technology!
