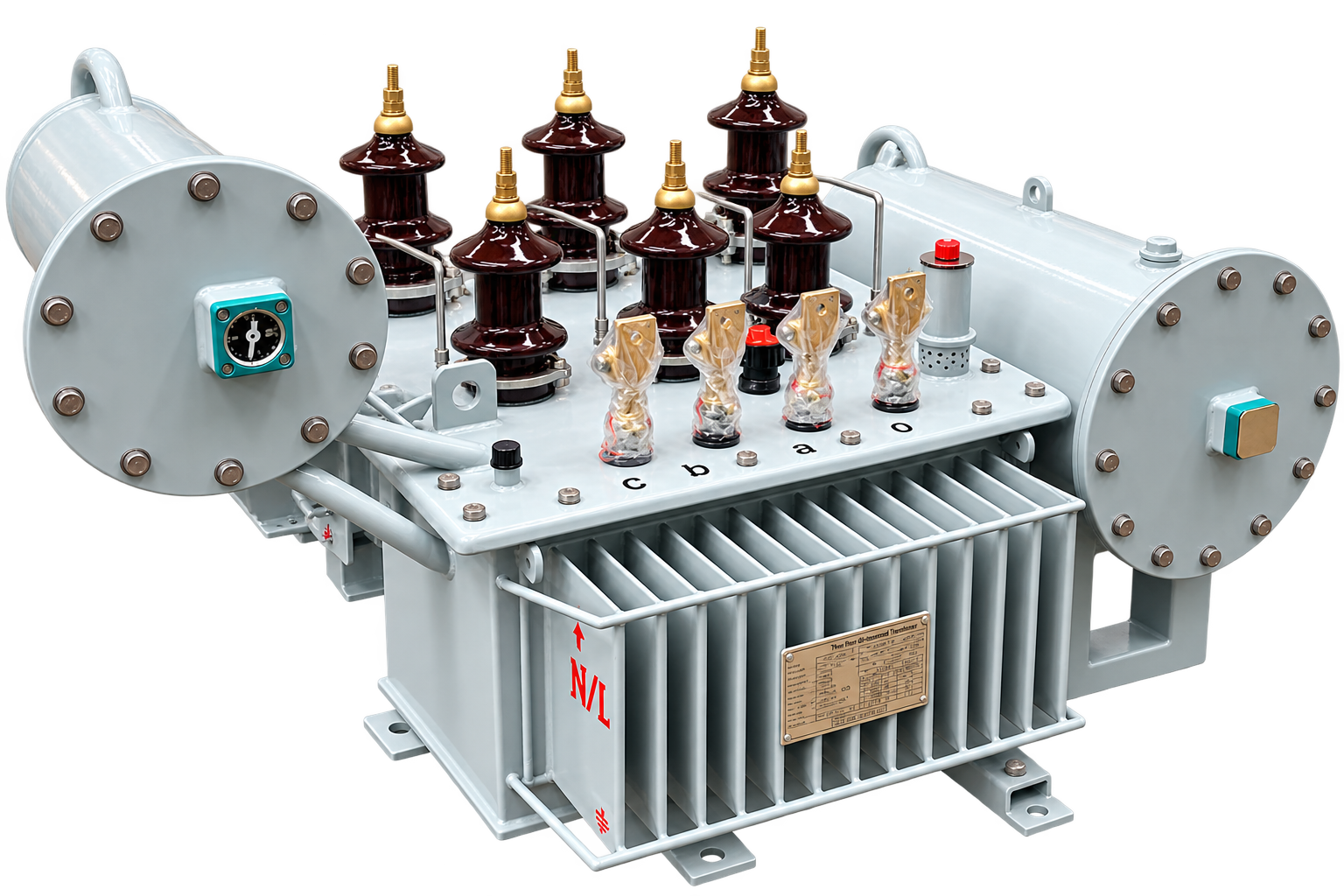

Hisense 200KVA 11/0.4KV Step Down Transformer in Nigeria

Hisense 200KVA Step Down Transformer 11/0.4KV Price in Nigeria

Name: Hisense 200KVA Step Down Transformer 11/0.4KV Price in Nigeria
Brand: Hisense
SKU: Hisense 200KVA
Price: 6600000.00 NGN
Availability: InStock

New

Original price was: ₦7,500,000.00.Current price is: ₦6,600,000.00.12% OFF

Three Phase Oil-immersed Transformer Model: S-200/11 Rated Capacity: 200 kVA Rated Frequency: 50 Hz Phase: 3 Phase Connection Group: Dyn11 Short Circuit Impedance: 4.13% Cooling Mode: ONAN Body Weight: 480 kg Oil Weight: 170 kg Total Weight: 856 kg Standard Code: IEC 60076-1:2011, IEC 60076-3:2013, IEC 60076-7:2005 Product Grade: 11kV/0.4kV Tapping Range: ±2 × 2.5% / 0.4 kV HV Line Terminal LI/AC: 75/28 kV LV Line Terminal AC: 3 kV Tapping Range / Primary Side Voltage: 1 – 11,550 V 2 – 11,275 V 3 – 11,000 V 4 – 10,725 V 5 – 10,450 V Rated values at Tap 3: Primary Voltage: 11,000 V Primary Current: 10.50 A Secondary Voltage: 400 V Secondary Current: 288.68 A

SKU: Hisense 200KVA Category: Solar & Power Solutions Tags: 11/0.4KV Transformer, 11KV Transformer Nigeria, 200KVA Transformer, Distribution Transformer Nigeria, Hisense 200KVA Transformer, Hisense Step Down Transformer Brand: Hisense

Description

Hisense 200KVA Step Down Transformer 11/0.4KV in Nigeria

The Hisense 200KVA Step Down Transformer 11/0.4KV is designed to reduce an 11KV medium-voltage electrical supply to a 0.4KV low-voltage distribution supply. With a 200KVA capacity, it is suitable for power distribution applications requiring greater capacity than smaller 50KVA and 100KVA transformer units.

The 11/0.4KV configuration makes this transformer suitable for projects where an 11KV incoming supply needs to be transformed for downstream low-voltage distribution.
