Hisense 500KVA 11/0.4KV Step Down Transformer in Nigeria

Hisense 500KVA Step Down Transformer 11/0.4KV Price in Nigeria

Name: Hisense 500KVA Step Down Transformer 11/0.4KV Price in Nigeria
Brand: Hisense
SKU: Hisense 500KVA
Price: 12000000.00 NGN
Availability: InStock

New

Original price was: ₦15,000,000.00.Current price is: ₦12,000,000.00.20% OFF

Product Parameters – Typical Ratings Rated Power (kVA): 500 HV (kV): 11 LV (kV): 0.4 Vector Group: Dyn11 No-Load Loss (W): 960 Load Loss (W) @ 75°C: 7150 Efficiency @ 100% Load: 98.2% | Efficiency @ 50% Load: 98.8% Cooling Type: ONAN Insulation Class: A Ambient Temperature Range: -45°C to +45°C Altitude Derating (1000–3000 m): External insulation clearance corrected for altitudes ≤1000 m Corrosion Protection: C5 Total Weight (kg): 500 kVA – 1,590 kg Dimensions (L × W × H) (mm): 500 kVA – 1650 × 1060 × 1460 mm Noise Level dB(A): 500 kVA – 60

SKU: Hisense 500KVA Category: Solar & Power Solutions Tags: 11/0.4KV Transformer, 11KV Transformer Nigeria, 500KVA Transformer, Distribution Transformer Nigeria, Hisense 500KVA Transformer, Hisense Step Down Transformer Brand: Hisense

Description

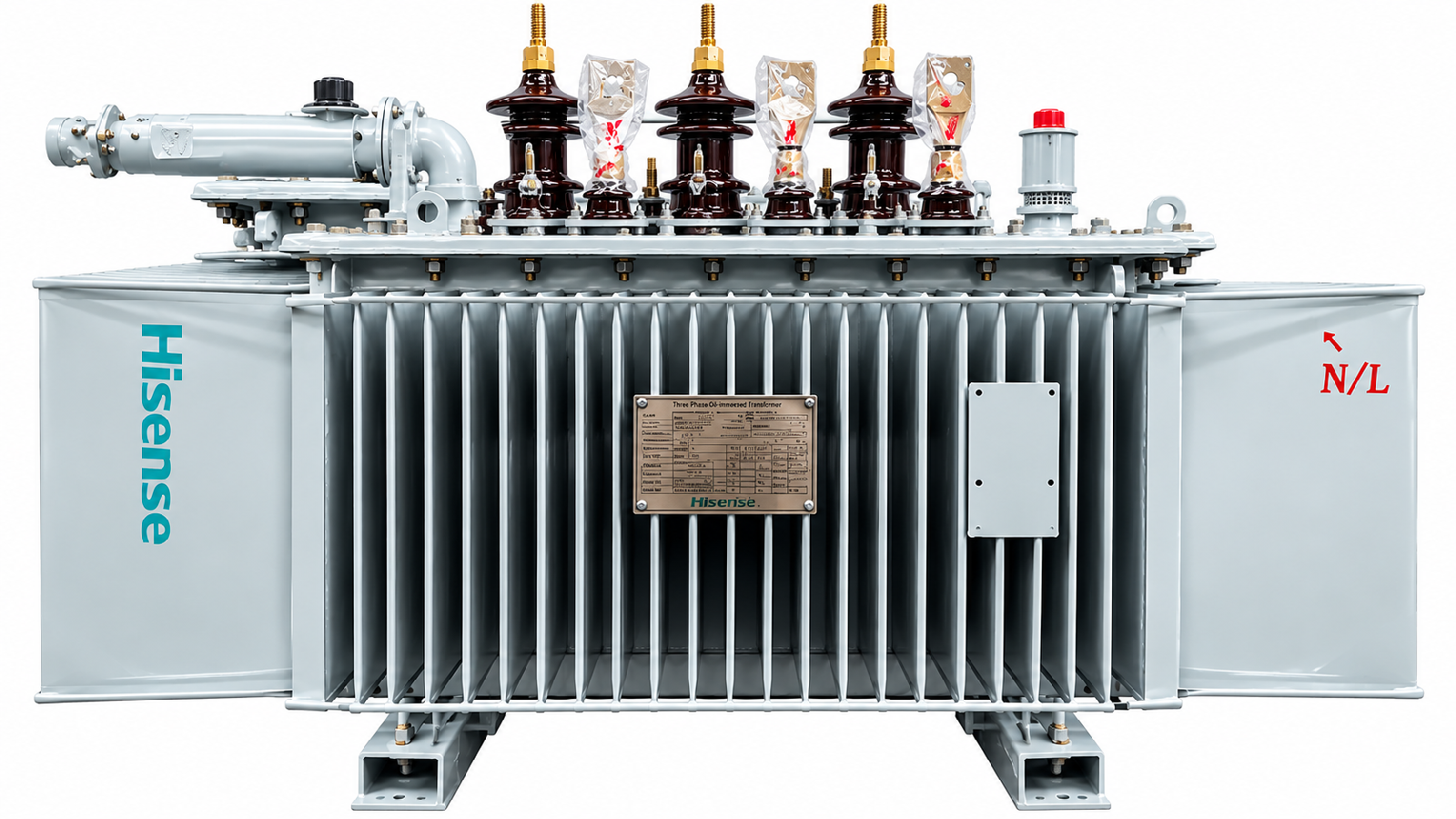

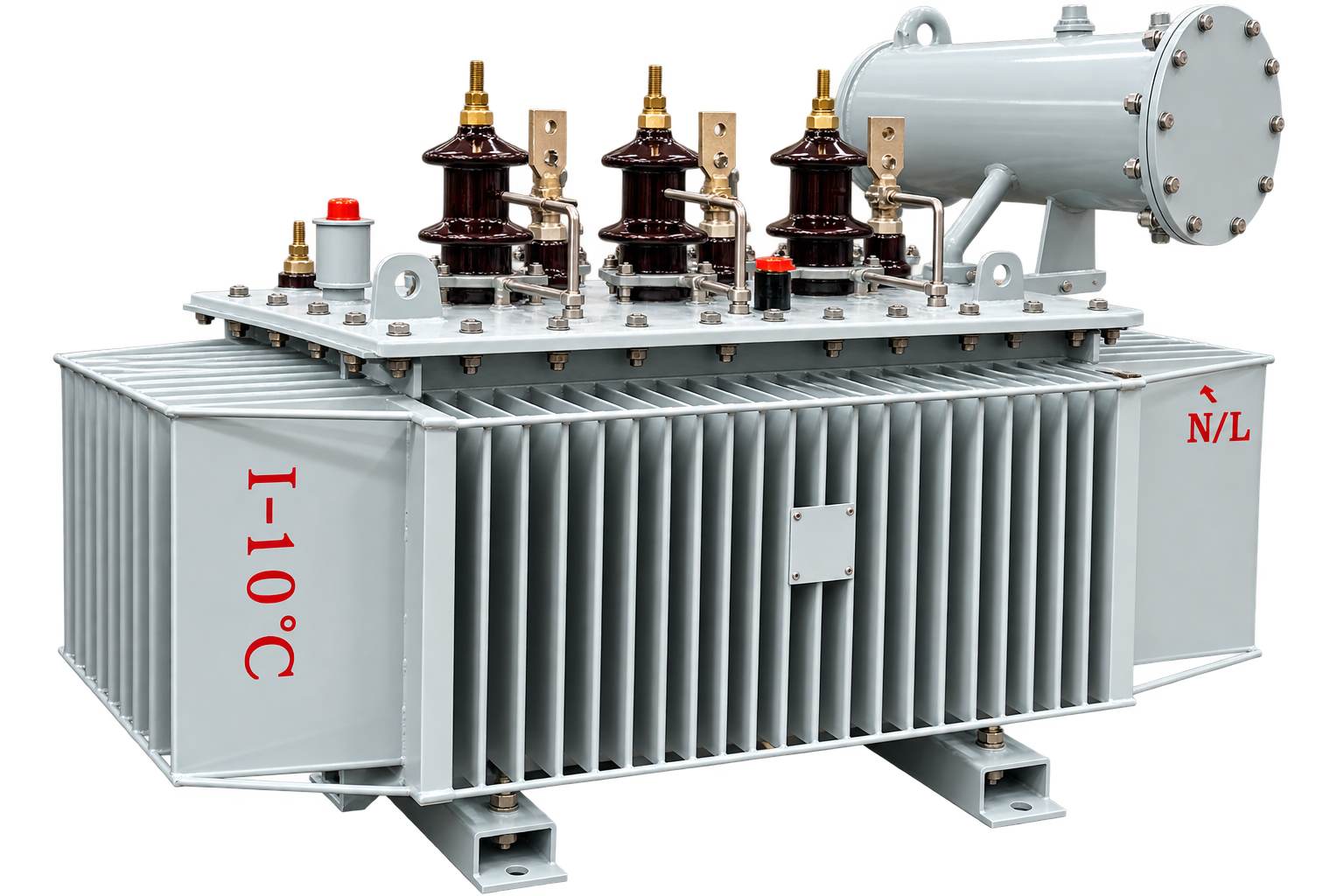

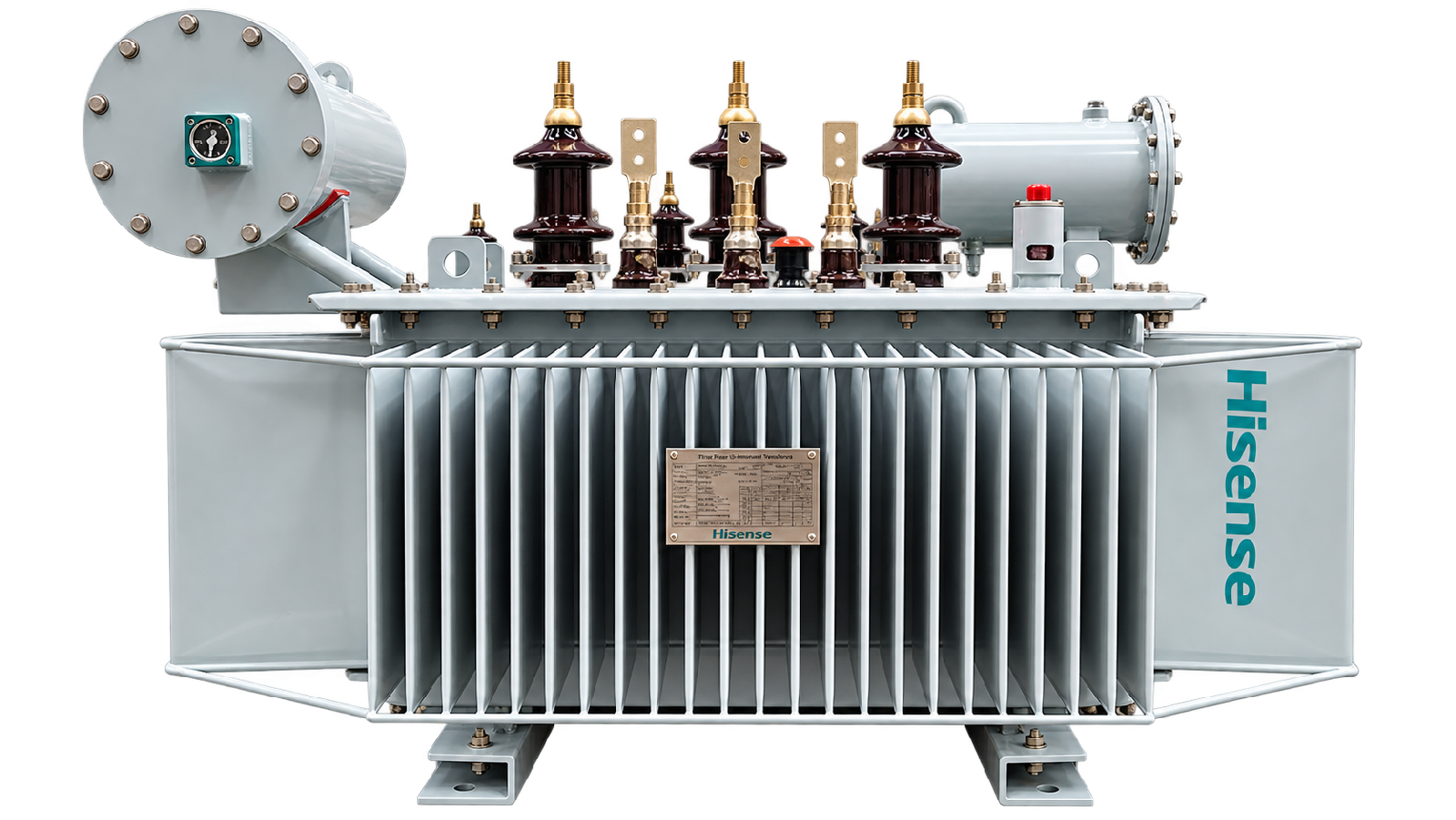

Hisense 500KVA Step Down Transformer 11/0.4KV in Nigeria

The Hisense 500KVA Step Down Transformer 11/0.4KV is designed to transform an 11KV medium-voltage electrical supply to a 0.4KV low-voltage distribution supply. With a 500KVA capacity, it is suited to electrical installations requiring substantial power distribution capacity.

The 11/0.4KV configuration is commonly used for medium-voltage to low-voltage power distribution. 500KVA 11/0.4KV transformers are used in commercial, industrial and other distribution applications.
